EM-61 Mk2A - Rentals
Description
Lithogen offers the Geonics EM-61 Mk2A metal detector for rent in Canada and the USA.
The Genoics EM-61 Mk2A is a high-power, high-sensitivity metal detector suitable for applications in the detection of both ferrous and non-ferrous metals. Based on the design principles of time domain electromagnetics, the system includes a single transmitter coil, and two receiver coils capable of detecting objects at depths up to and in excess of 3 metres (depending on their size and orientation). The system is ergonomically designed and can be pushed or pulled as a trailer, by a person or a vehicle.
Applications
– detection of underground environmental hazards
– unexploded ordnance detection
– utility and infrastructure mapping
– construction and industrial waste detection
Accessories

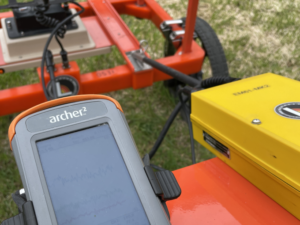

Archer2 or Mesa3 or similar Data Logger (included in price).
Optional: External Geode GPS, Emlid RS+ RTK.
A Geode is highly recommended if your line spacing is less than 4m; RTK if your spacing is less than 20cm.

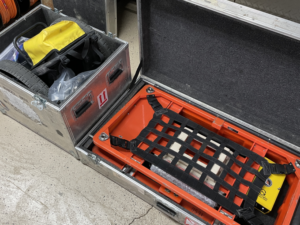

Weights and Dimensions (Shipping)
Box 1: 36.4 kg, 64 x 54 x 58 cm
Box 2: 40.2 kg, 61 x 113 x 24 cm
Box 3: 4.5 kg, 128 x 27 x 9 cm
Dataloggers (and the optional GPS units) contain lithium ion batteries. If shipping by air, the appropriate info is: UN3481 lithium ion batteries packed with equipment (packing instruction PI967), cells below 20 Wh, battery packs below 100 Wh. If the equipment is shipped with a datalogger or GPS, it will ship with the UN3481 sticker on the case.
Rental Prices
Our latest daily, weekly, and monthly rental rates for Geonics equipment, as well as our general rental terms and conditions, can be found below:
Canada Rental Rates (CAD)
USA Rental Rates (USD)
Contact us for Expert Advice
Additional information on the Geonics EM-61 Mk2A is available here.
