SPIDAR - Rentals and Sales
Description
Lithogen offers the Sensors and Software SPIDAR GPR system for rent or purchase in Canada and the USA.
The Sensors and Software SPIDAR is a modular GPR system that allows for networking of multiple channels and frequencies and is designed for custom applications, multiple-frequency surveys, large antenna arrays, or unusual mounting solutions. It allows arbitrary combinations of Noggin or pulseEKKO antennas and transmitter/receiver elements that allows users to increase productivity and complete a wide range of survey types, including WARR and CMP surveys. The SPIDAR also creates its own WiFi hotspot that reduces the amount of cables needed and allows data collection from any device with a compatible browser loaded.
Sample Configurations / Applications
The following is a sample of some of the custom SPIDAR systems that Lithogen has configured for our clients:
– SPIDAR NIC500N ATV towed system with two Noggin 500 MHz antennas for airport runway voids under concrete mapping
– SPIDAR NIC500X vehicle towed system with three pulseEKKO 250 MHz transmitters and four 250 MHz receivers used for mapping large scale archaeological sites

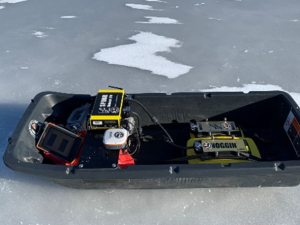

– SPIDAR NIC500N SmartSled system with one 1000 MHz Noggin antenna and one 500 MHz Noggin antenna used for assessing ice growth on public skating surfaces
– SPIDAR NIC500N vehicle towed system with two 1000 MHz Noggin antennas for rapid scanning of concrete on active roads

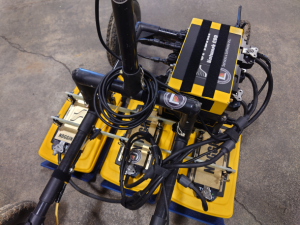

– SPIDAR NIC500X SmartCart system with one pulseEKKO 500 MHz transmitter and seven pulseEKKO 500 MHz receivers for fast WARR/CMP archaeological surveying
Rental Prices
Our latest daily, weekly, and monthly rental rates for Sensors and Software equipment, as well as our general rental terms and conditions, can be found below:
Canada Rental Rates (CAD)
USA Rental Rates (USD)
Contact us for Expert Advice
Additional information on the Sensors and Software SPIDAR systems is available here.
