GroundTEM i-Series - Rentals and Sales
Description
Lithogen offers the ABEM GroundTEM i-Series TDEM system for rent in Canada and the USA and for purchase within Canada.

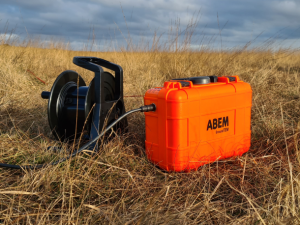

The GroundTEM TDEM i-Series system is ideal for mapping depth to bedrock, soil variations, water and permafrost, contaminants, and other targets that have contrasts in electrical properties. It is designed to be compact and easy to use for rapid deployment on near-survey TEM surveys in areas without significant large metallic objects nearby. The unit can be configured in a variety of ways depending on desired resolution and survey depth, including configurations with transmitter output current ranging from 5 to 20 A, transmitter loops ranging from 20 x 20 m to 80 x 80 m, as well as 1.6 x 1.6 m and 3 x 3 m Explorer Coils.
Applications
– groundwater exploration
– pollution and contaminant mapping
– permafrost mapping
– overburden and depth to bedrock mapping
– gravel exploration
Weights and Dimensions (Shipping)
60x40x33 cm – 16kg (GroundTEM i-Series unit)
120x40x17 cm – 24 kg (Explorer Coils 3 x 3 m)
* GroundTEM contains lithium ion batteries. If shipping by air, the appropriate info is: UN3481 Lithium Ion Batteries packed with equipment (packing instruction PI967) — cells below 20Wh, battery packs below 100Wh.
Rental Prices
Our latest daily, weekly, and monthly rental rates for ABEM equipment, as well as our general rental terms and conditions, can be found below:
Canada Rental Rates (CAD)
USA Rental Rates (USD)
Contact us for Expert Advice
Additional information on the ABEM GroundTEM i-Series is available here.
